APPLICATIONS:
Primarily used for overhead service drop applications,such as:street lighting.outdoor lighting and temporary service for construction.To be used at voltages of 600v phase-to-phase or less and at at conductor temperatures not to exceed 75℃ for polyethylene(PE) insulated conductors or 90℃ cross-linked polyethylene(XLPE) insulated conductors.

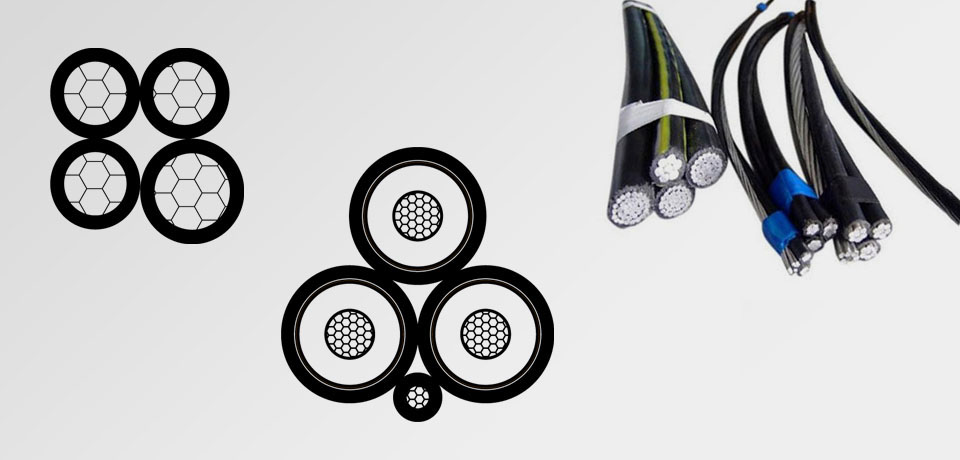

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power
losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room entrance wires with AC rated voltage 1kV and below.
STANDARDS
GB/T12527,1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.
*ZMS Cable can also design and produce for special application requirement.

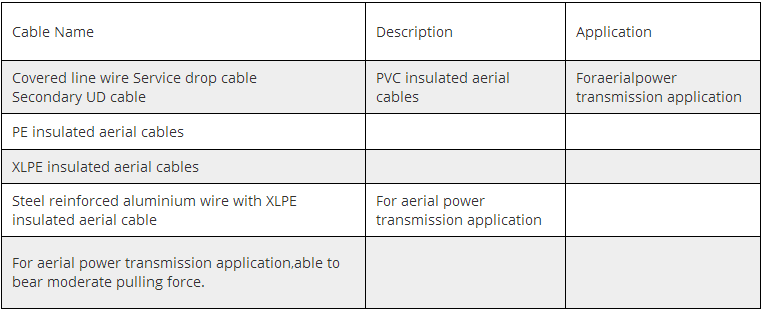

PRODUCTS TYPE
PRODUCTION RANGE
Rated Voltage U0/U(Um) (KV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2
Nominal cross-section(mm2): 10~240

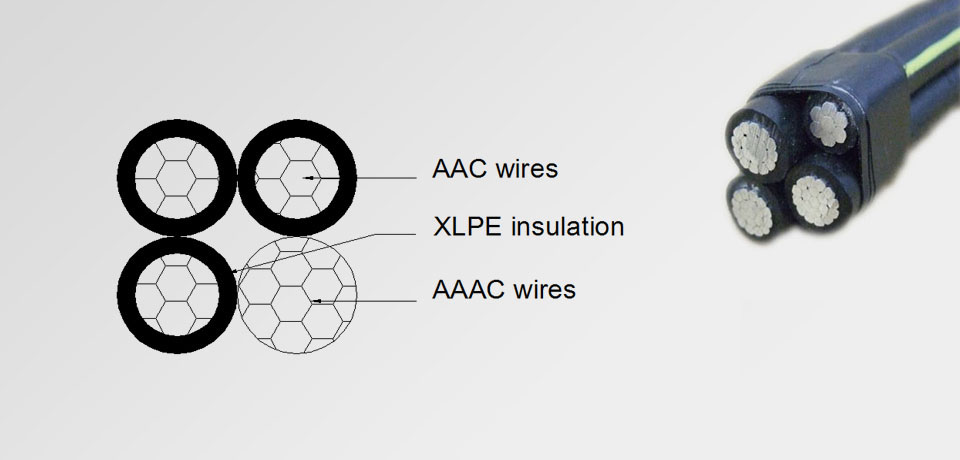

CONSTRUCTION
Phaseconductors :Round standed or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR
Neutral or messenger conductor :Round standed or compacted 6201 aluminium alloy or AAC ,ACSR
Street lighting conductor: Round standed or compacted Aluminium conductor
Insulation : LDPE ,HDPE,XLPE ,PVC ( UV-resistant)
