type: Insulated
Application: Underground
Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: PVC
Color: Green Blue Red Grey Black or as your request

Voltage: 300/500V 450/750V

Copper material: Annealed Copper wire
Insulation material: PVC XLPE PE LSZH EPR EPDM HMDPE
sample: sample in stock
SPECIFICATIONS
light cable
professional manufactuer
big production capacity
ISO9001&CCC
sample in stock
COPPER TAPE SCREENED AIRPORT LIGHTING CABLE:
FAA-L-824 Underground primary cable for Airport lighting circuits
Type C : Copper tape screened cable 5kV
Reference standard :FAA AC 150/5345-7E

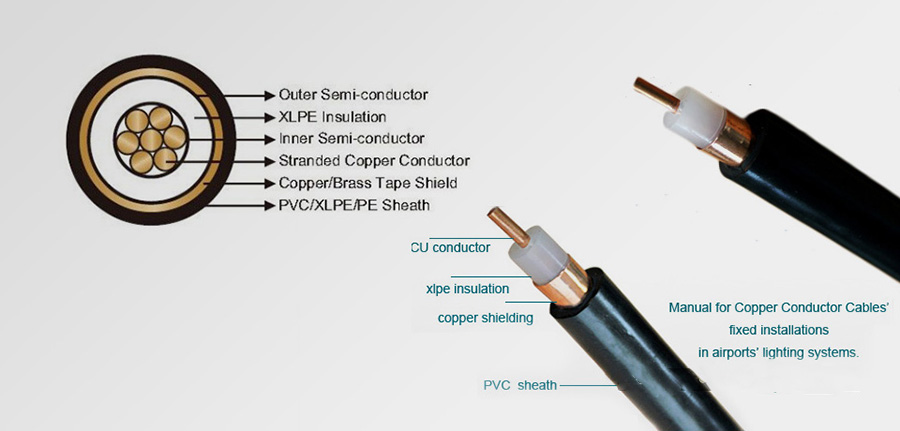

CONSTRUCTION:
Stranded tinned copper conductor
Extruded semi-conducting compound
XLPE Insulation cable
Semi-conducting tape, helically applied
One lay of copper tape, helically applied, 30% Overlapping
Separation tape
PE outer sheath - black
PROPERTIES:
Abrasion resistant,Oil resistant,UV resistant,Deicer resistant (FR/KAc) ,Halogen-free
Service temperature: -40 ... +85 °C (for a max. current of 6.6 A)
Min. bending radius: 12x outer diameter
Max. pulling force: copper cross-section (in mm2) x 50 N/mm2

Min. laying temperature: -10 °C

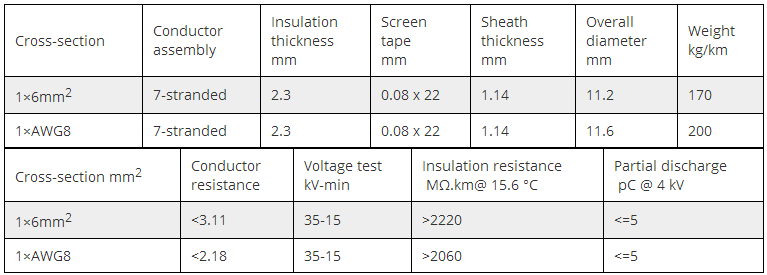

DIMENSIONS:
