Single croe and Multi Core Cable.Soild or Stranded Plain copper ,PVC insulated and PVC sheathed.



APPLICATION:
NYY cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

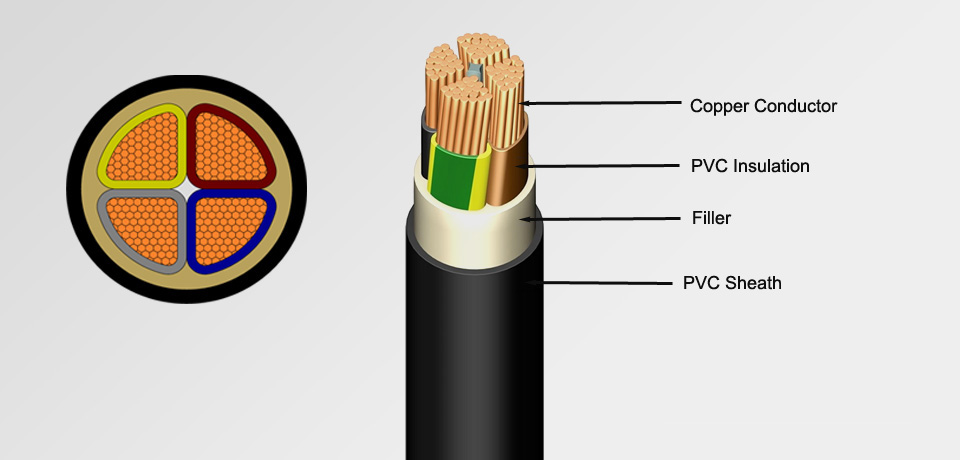

CONSTRUCTION

Conductor：Copper
Nominal Cross-sectional Areas:
6 mm2, 10 mm2 ,16 mm2,25 mm2, 35 mm2, 50 mm2 ,70 mm2,95 mm2,120 mm2,150 mm2,185 mm2,240 mm2,300 mm2,400 mm2,500 mm2
Iinsulation：PVC (Polyvinyl Chloride)
Characteristics Voltage Rating(UO/U):600/1000V
Temperature Rating:
Fixed: -15°C to +70°C
Flexed: -5°C to +50°C
Sheath Color：
Red Black Blue Orange Yellow White
Green Grey Brown Violet Pink
CABLE STANDARDS:

IEC60502,IEC60228

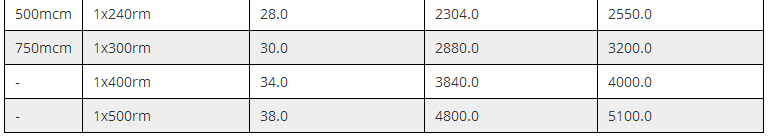

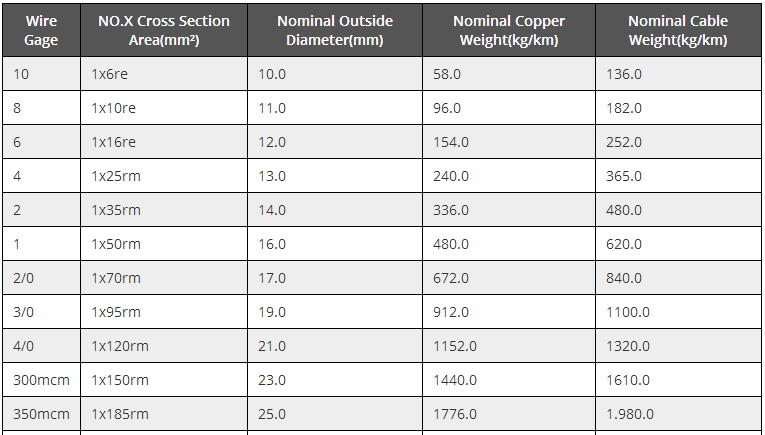

TECHNICAL CHARACTERISTICS:
