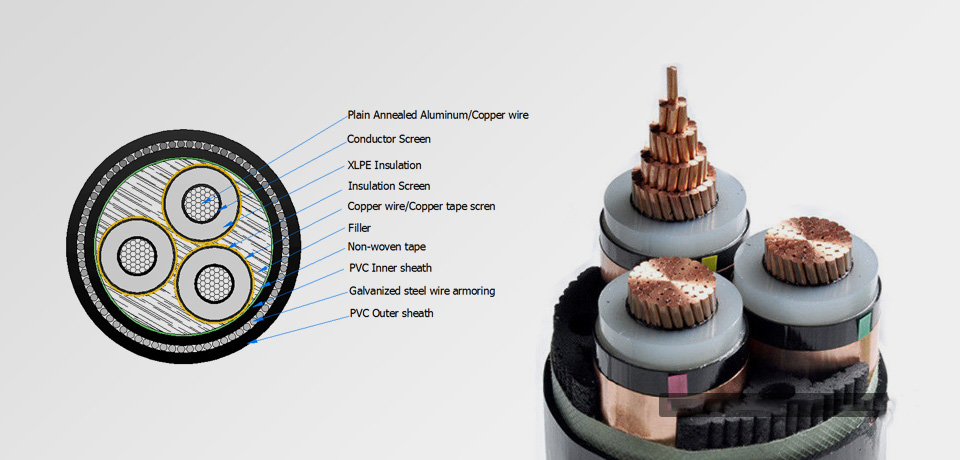

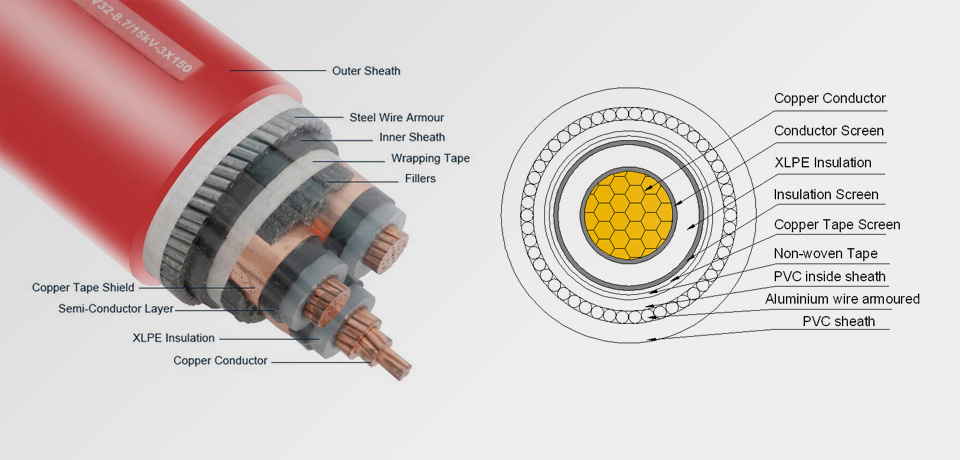

26/35 kV Cu(AL)/XLPE /SWA(STA)/PVC Power Cable(3 CORE) AND 26/35 Cu(AL)/XLPE /AWA(ATA)(1 CORE )/PVC Power Cable.



(26/35kV XLPE Cable) manufactured by ZMS cable meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc Cu(Al) conductor XLPE insulated PVC sheated armored power cable is not only have excellent electric, mechanical properties, but also have powerful resistance against chemical corrosion, heataging and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90'C. It is convenient for using, and they can be laid with no restriction of different elevation.

APPLICATION:

Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. For installation in ground, in water outdoors,indoors and in cable ducts for power stations, industry, and distribution networks. The water blocking tape avoids propagation inside the cable.

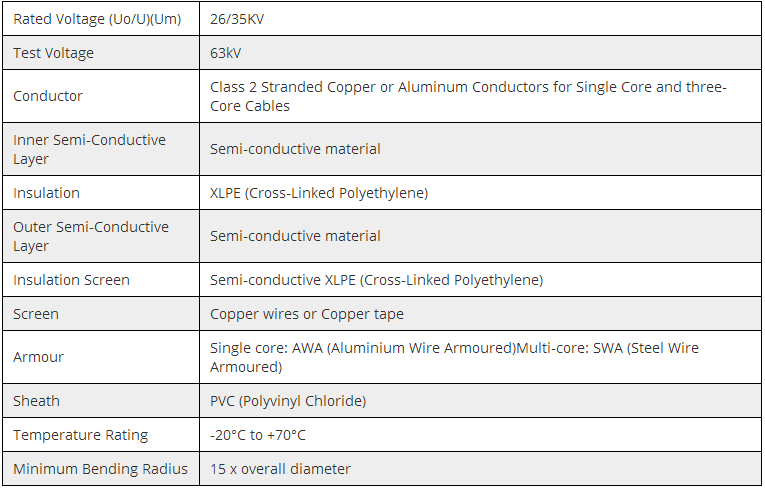

TECHNICAL DATA:



CABLE STANDARDS:

Standards:IEC60502-2, BS7870-4, BS7870-7, BS7870-8

FAQ:
Q: what is our payment term ?
A: Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
Q: what is the lead time ?
A: The lead time usually is 10 - 30 working days.
Q: what is the package of the cable ?
A: The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
Q: Could we provide the free sample for customer ?
A:Sure, we provide the free sample for customer to checking.
