Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead cable.

0.6/1kV overhead aerial bundled cable



Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead cable.

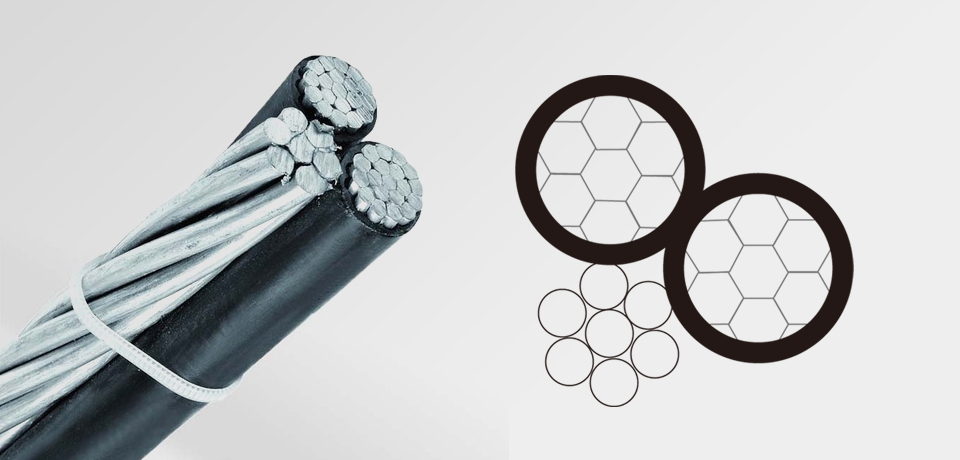

0.6/1kV  XLPE insulated triplex abc overhead cable
PRODUCT DESCRIPTION
1. 0.6/1 kV Overhead Cable
2. Aluminum conductor
3. XLPE /PE Insulation
4. Phase conductor+ neutral Conductor
5. IEC ICEA NFC Standard
LV Aerial Bundled Conductor (ABC) Cables
APPLICATION OF TRIPELX ABC CABLE

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead powerdistribution as compared to the conventional bare conductor overhead cable.

PROPERTY SYSTEM.

It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance),as a secondary cable (pole to pole) or street lighting.
This over-head cable providesreinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140.
It is not flame retardant. But this could be if requested change to a flame retardant cable.
STANDARD OF TRIPELX ABC CABLE
Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards
Construction of tripelx abc cable

Conductor: Aluminium conductor, round stranded compressed (RM).

insulation: XPLE compound, UV-resistant.
Core identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores.
The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm2
and a minimum of 16 ribs for cores above 50 mm2. In the case of five core bundles the
surface of the protective core should be smooth.

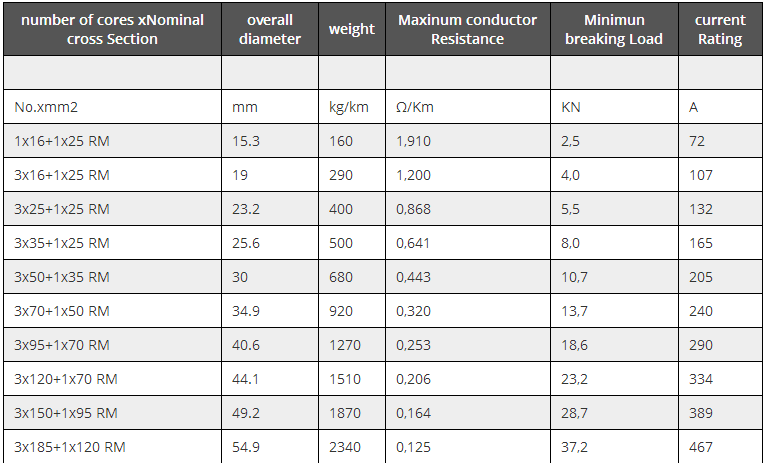

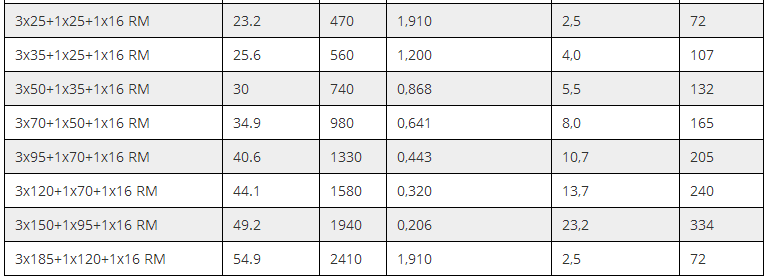

CONSTRUCTION PARAMETERS OF TRIPELX ABC CABLE TNB SPECIFICATION (IEC 60502)
