EV Cables (Cables for Electric Vehicle Conductive Charging System)

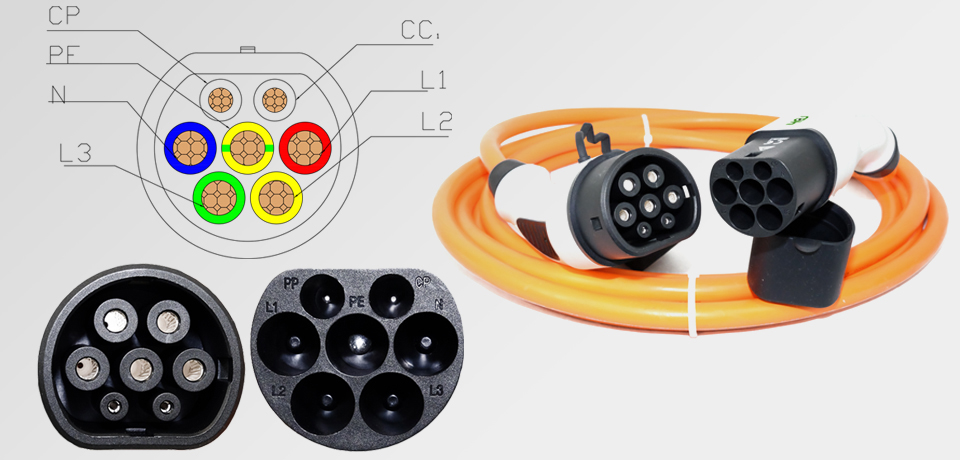

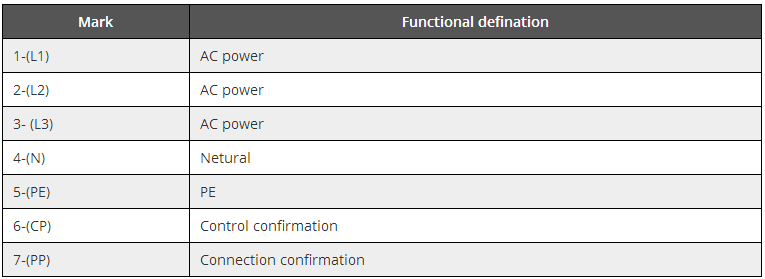

Insert arrangements and functional defination:

FEATURES:
1.Chargingg plug meet 62196-2 IEC2010 SHEET 2-lle standard
2.Product assembly meet GB/T 20234.2-2011 charging mode 3 connection method B2
3.Nice appearance,hand-held ergonomic design,easy plug
4.Reliability of materials,antiflaming,pressure-resistant,abrasion resistance,impact resistance and high oil.
5.Excellent protection performance,protection grade IP55 (Working condition)

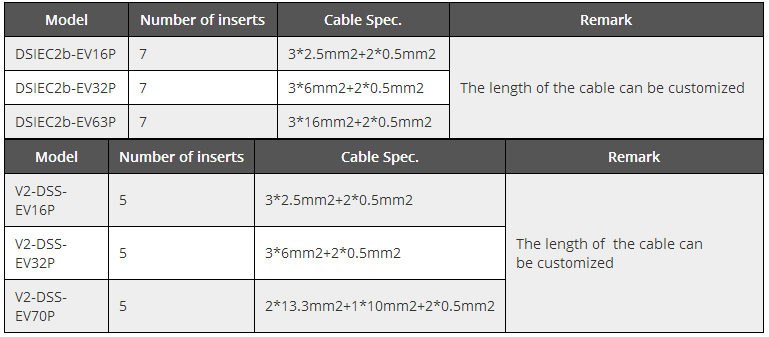

Model selection and the standard wiring:

MECHANICAL PROPERTIES:
1.Mechanical life:no-load plug in/pull out >10000 times
2.Impat of external force:can afford 1M drop and 2t vehicle run over pressure.

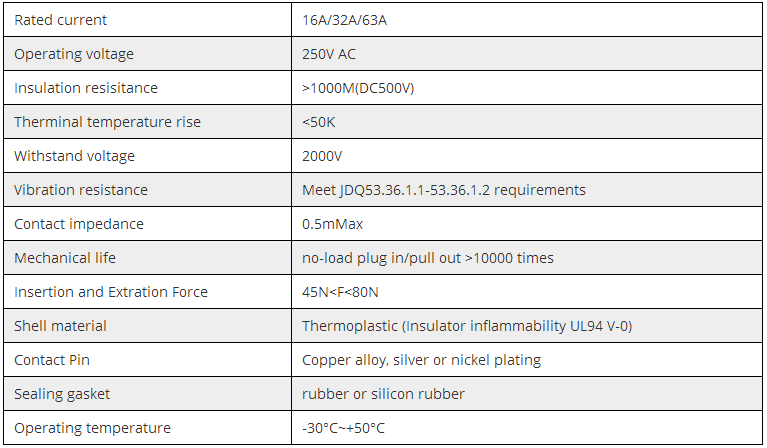

ELECTRICAL PERFORMANCE
1.Rated operating current:16V or 32A
2.Operating voltage:250V
3.Insulation resistance:>1000MO(DC500V)
4.Terminal temperature rise:<50K
5.Withstand voltage:2000V
6.Contact Resistance:0.5mO Max

APPLIED MATERIALS:
1.Case Material:Thermoplastic,flame restardant grade UL94V-0
2.Contact bush:copper alloy,silver planting
Environmentol performance:
Operating temperature:-30℃~ +50℃
