0.6/1KV N2XSY cable



600/1000V XLPE Insulated Copper wire screen PVC Sheathed Cable

APPLICATION:

These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors , in cable ducts , under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

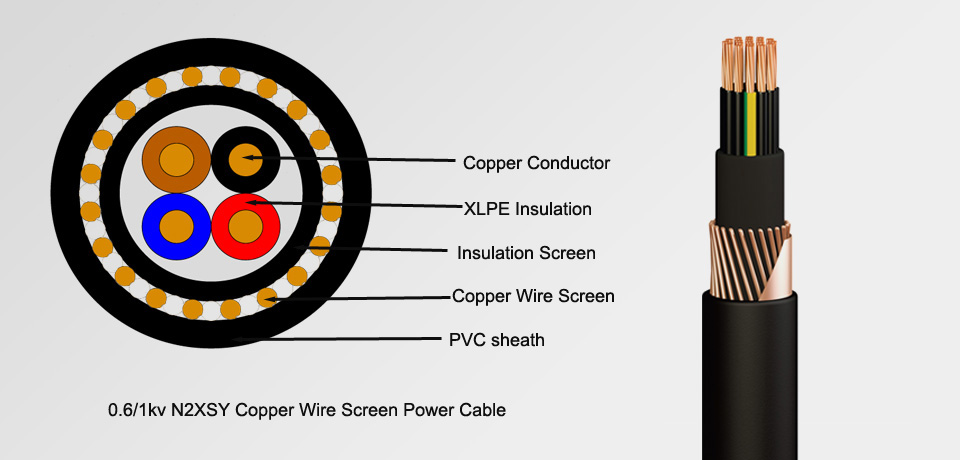

CONSTRUCTION:
Conductor: Solid or stranded copper （1C,2C,3C,4C,5C or Multi-core）
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)

Filler: Polypropylene filament with lapped binding tape

Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Characteristics voltage rating: (UO/U):600/1000V
Testing voltage:4000V
Temperature Rating:
Fixed: -5°C to +70°C
Flexed: -30°C to +70°C
Short circuited temperature:+250oC

Insulation resistance:20 MΩ x km

STANDAR:
IEC 60228

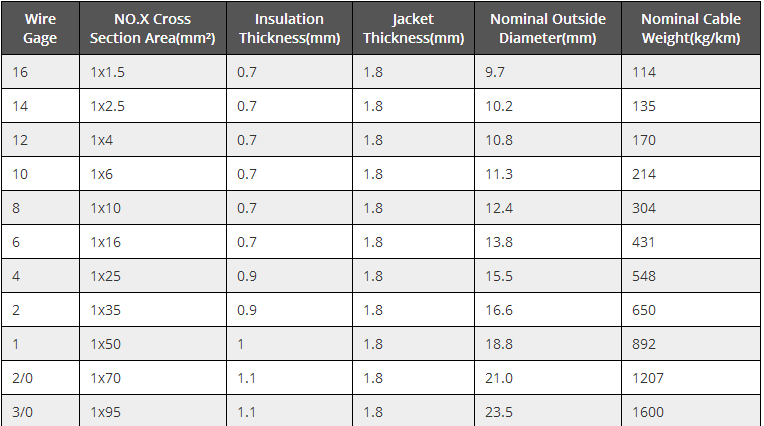

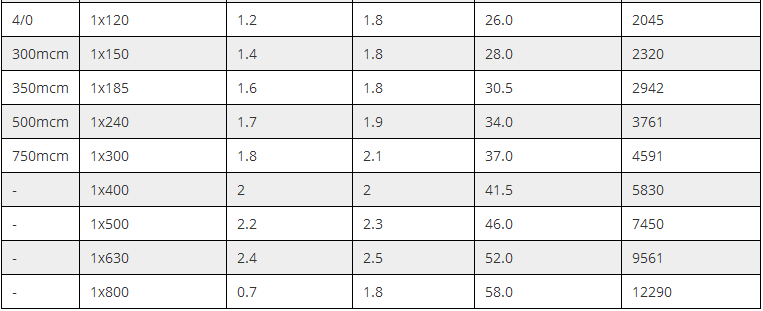

TECHNICAL CHARACTERISTICS:
