Low voltage 3 core rubber insulated flexible wire h07rn-f 3g1.5 rubber cable 3x1.5



SPECIFICATION:

Model: H07RN-F YC/YCW

Voltage: 300/500v,450/750v

Conductor Material: Copper

Insulation Material: Ethylene propylene rubber

Jacket Material: Natural rubber/Chloroprene rubber

Conductor Type: Soft Conductor

Operating temperature: Cable conductor long-term maximum allowable working temperature of 65 ℃; short circuit, the cable conductor maximum temperature does not exceed 160 ℃, the duration of not more than 5S.

Environmental Temperature: The cable runs at a minimum ambient temperature of -10 ° C..

Laying temperature: Installation laying, the temperature should not be less than -10 ℃.

Bending radius: Cable bending radius of not more than 10D..

Color: green / yellow, light blue, black, brown,or according to customer requirements

APPLICATION:
Super flexible cable can be fixedly laid in various environments such as indoor/outdoor, aerial, cable conduit or tunnel for power transmission and distribution line project, with rated A/C Uo/U being 450/750V or below. It widely used in outside small electric devices, agriculture electrification, construction lifts and gantries. And it is suitable for welder connection which is operates under Uo/U 220V.

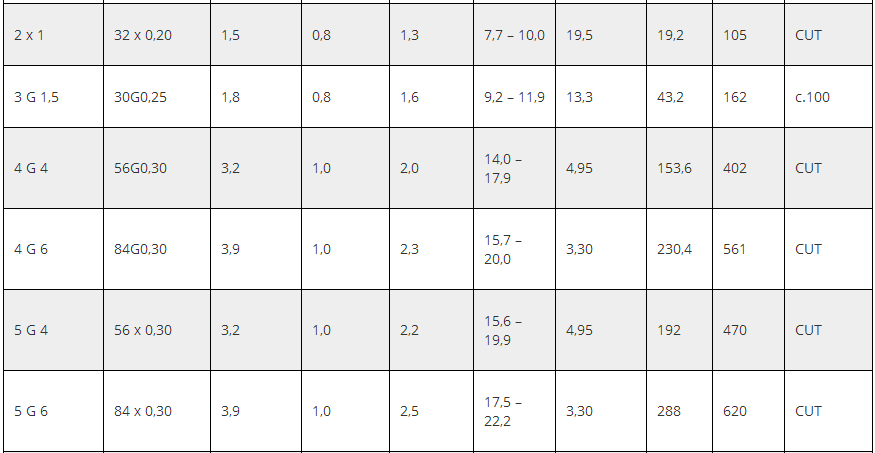

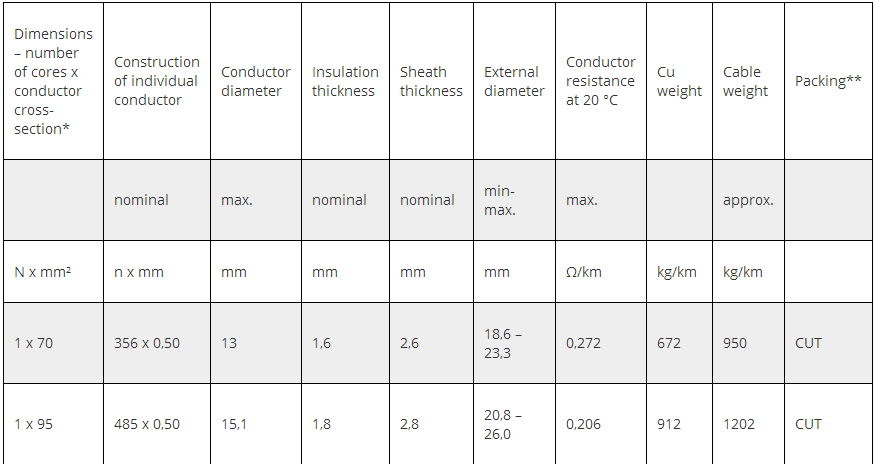

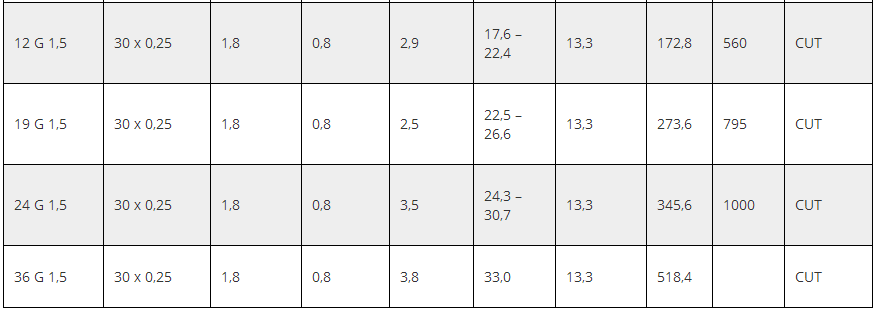

H07RN-F TECHNICAL CHARACTERISTICS：
