300/500V XLPE Insulated, armoured LSZH sheathed power cables (2-4 cores)



300/500v xlpe insulated, armoured lszh sheathed power cables (2-4cores)

FTX200 05RZ1MZ1-R (CU/XLPE/LSZH/SWA/LSZH300/500V CLASS 2)
APPLICATION

The cables are mainly used in power stations,mass transit underground passenger systems,airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS
Basic design adapted tobs 6724

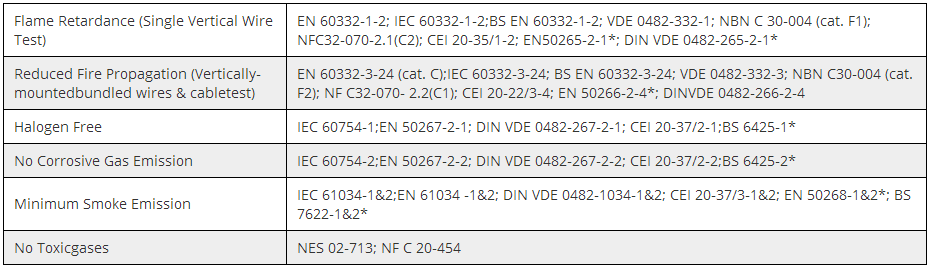

FIRE PERFORMANCE

Note: Asterisk* denotes superseded standard.
VolTaGe RaTInG
300/500V

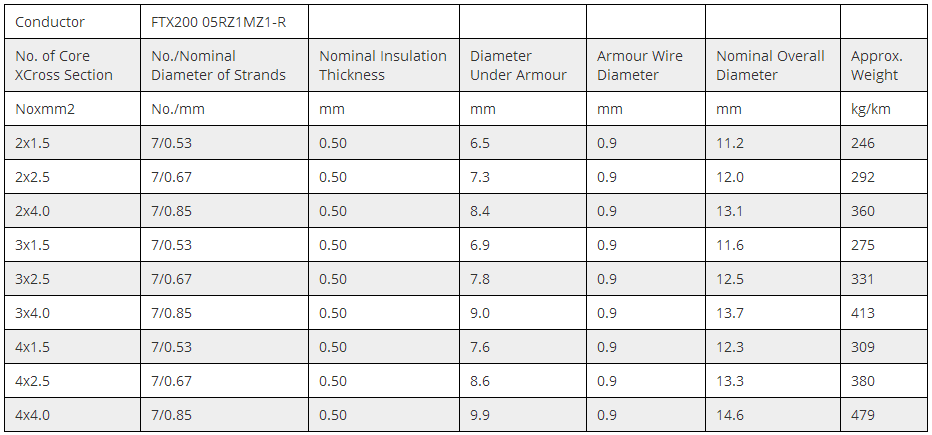

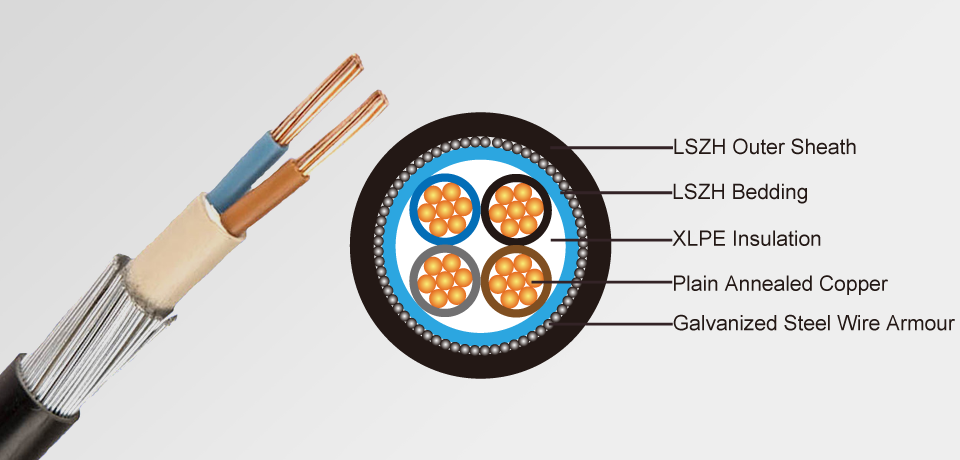

cable consTRUcTIon
conductor: Plain annealed copper wire,stranded according to IEC 60228 class 2.
Inner sheath(optional): Thermoplastic LSZH Compound.
armouring: Galvanized steel wire.
outer sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1. UV resistance, hydrocarbon resistance, oil resistance, antirodent and antitermite properties can be offered asoption.

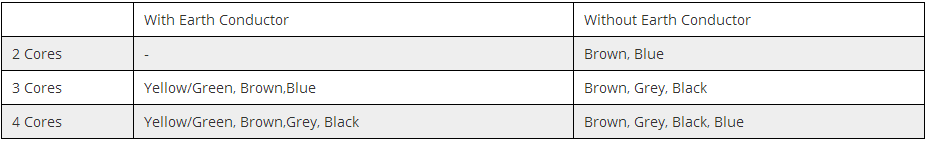

coloURcoDe
Insulation colour as per bs7671

Sheath colour: Black (other colors upon request)
Physical and thermal properties
Maximum temperature range during operation (xlpe): 90°c maximum short circuittemperature (5 seconds): 250°c minimum bending radius: 10 x overall diameter

conductor operating Temperature : 90°C ambient Temperature : 30°C

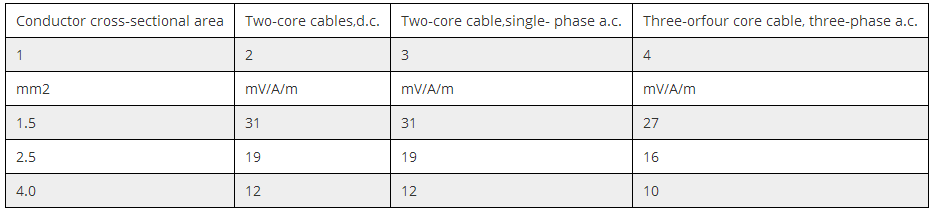

Voltage Drop (Per amp Per Meter)
