Fire Resistant Power & Control Cables 300/500V Mica+XLPE Insulated, LSZH Sheathed Power Cables (Single Core)FFX300 05mRZ1-R (CU/MGT+XLPE/LSZH 300/500V Class 2) APPLICATION The cables are designed for areas where the integrity of the electrical circuit is critical in maintaining power supply.



300/500V XLPEINSULATED, LSZH SHEATHED POWER CABLES (SINGLE CORE)
fTx300 05RZ1-R (cU/xlPe/lsZH 300/500V class 2)
aPPlIcaTIon
The cables are mainly used in power stations,mass transit underground passenger systems,airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
sTanDaRDs

Basic design adapted toIEC 60502-1

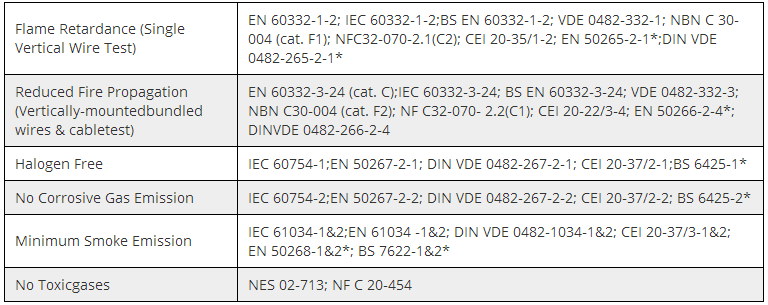

fIRe PeRfoRMance

Note: Asterisk* denotes superseded standard.

VolTaGe RaTInG
300/500V

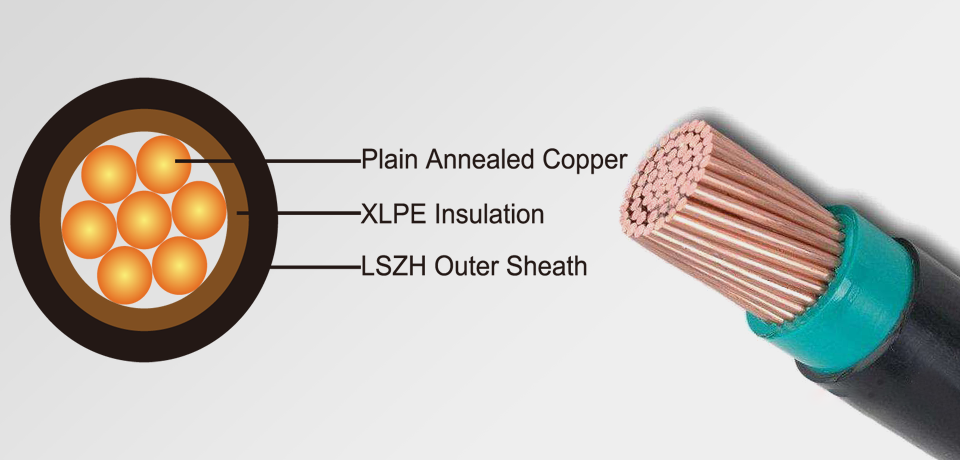

conductor: Plain annealed copper wire,stranded according to IEC 60228 class 2. Insulation: Extruded XLPE compound. outer sheath: Thermoplastic LSZH compoundtype LTS3 as per BS 7655-6.1.UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered asoption.

coloUR coDe

Insulation colour asper bs7671 sheath colour: Black (other colors upon request)
PHysIcal anD THeRMal PRoPeRTIes
Maximum temperature range during operation (xlPe): 90°C Maximum short circuittemperature (5 seconds): 250°C Minimum bending radius: 6 x Overall Diameter
elecTRIcal PRoPeRTIes
conductor operating Temperature : 90°C ambient Temperature : 30°C
